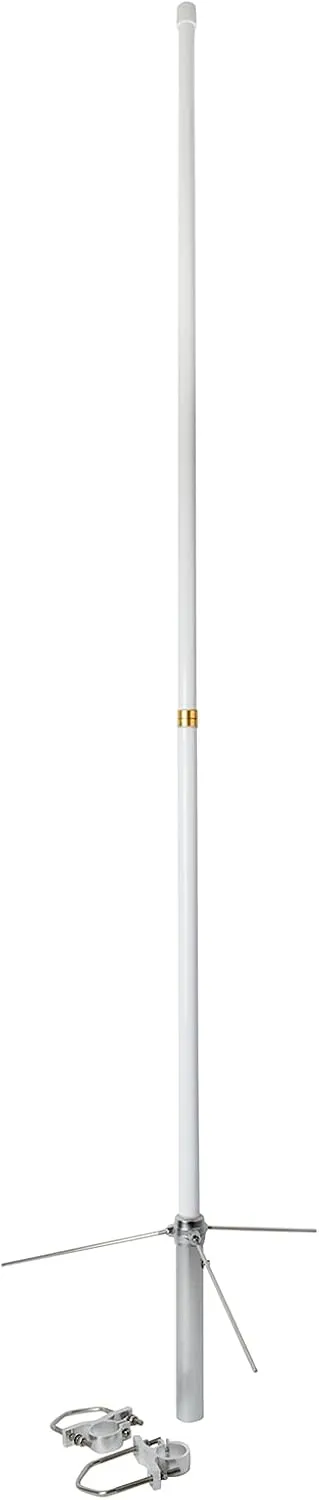

- Dual-band-It’s a dual-band omnidirectional base station antenna for the UHF and VHF bands,which is designed to give optimal performance for mobile radios and repeater systems.It works for Midland,BTECH,Retevis transceviers and repeaters.
- High performance-The YN-A-SJ-UV-1.7 is a high-performance base antenna with a 200-watt power rating,which allows working with high-wattage equipment.It also offers 7.2dBi gain on UHF band and 4.5dBi on VHF.
- Weather resistant-The antenna is weatherproof and resistant to shoreline environmental damage with its fiberglass construction.And there’s no need to worry about corrosion on the element with this design.
- 2-section design-This antenna features 2-section design that helps easy installation and storage.It stands at 67" tall when installation finished.
- Includes mounting hardware-It can be easily installed on any Ø30mm to Ø62mm mounting mast or pipe with the included U-bolts.
- Specifications-Frequency Range 144/430MHz SWR:<1.5 UHF Female (SO239) connector Impedance: 50Ω Radome Material:Fiberglass Material of Hardware-supplied:Aluminum Alloy
Specifications
Band:VHF/UHF
Frequency Range:144/430MHz
Max power:200Watts
Gain:4.5/7.2dBi
SWR:<1.5
Connector:UHF Female (SO239)
Pattern:Omni-directional
Height:1.7meter/67in
Weight:1.0Kg
Impedance: 50Ω
Polarization:Vertical
Lighting Protection:Direct Ground
Radiating Element Material:Cu
Radome Material:Fiberglass
Color:White
Material of Hardware-supplied:Aluminum Alloy
Hold Pole Diameter:Ø30～Ø62 mm
