- IP Rating: IP 67
- Connector: N-type Female
- Size: 16.2 x 14.7 x 1.4 in.
- Gain: 12 dBic
- CABLE NOT INCLUDED. If you need a antenna cable, please look at our cables that we have available.

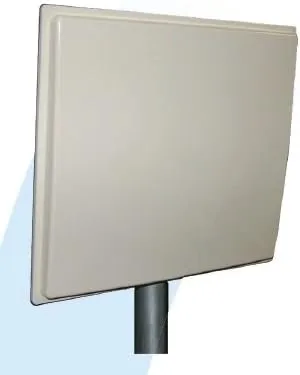

The PA9-12 flat panel directional antenna by RFMAX offers high-gain in a thin, low- profile package. The antenna is constructed of an off white color UV resistant ASA plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization. The included heavy duty pole mount bracket allows up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be wall or pole mounted. The PA9-12 comes with an integral N female connector standard.  SPECIFICATIONS ELECTRICAL: Operating Frequency: FCC 902-928 MHz Polarization: Linear vertical Gain: 12 dBi Max Read Distance: N/A Elevation Beamwidth: 55° Azimuth Beamwidth: 40° MECHANICAL: Connector Type: N-Type Female Cable: Not included Mounting: Surface/mast mount Dimensions: 16.2 x 14.7 x 1.4 in (411.5 x 373.4 x 35.5 mm) Weight: 3 lbs (1360.8 g) ENVIRONMENT: IP Rating: IP 67 Operating Temperature: -30° to 70°C
