- 2 Pole 3 Slots Hi-torque motor design
- CNC Machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency; High RPM ABEC5 oversized bearings
- Universal fit, fits all 1/24th, 1/28th brushless cars-multi-mounting system for M2.0 screws
- Precision balanced rotor, smoothness for best reliability and maximum RPM; Precision engineered for maximum energy conversion
Features:
*2 Pole 3 Slots Hi-torque motor design
*CNC Machined 6061 T6 billet aluminum heatsink can
*High purity copper windings maximizes efficiency
*High RPM ABEC5 oversized bearings
*Universal fit, fits all 1/24th, 1/28th brushless cars-multi-mounting system for M2.0 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM
*Stator-super thin(0.2mm) laminations
*Precision engineered for maximum energy conversion
Specification:
Brand: KingVal

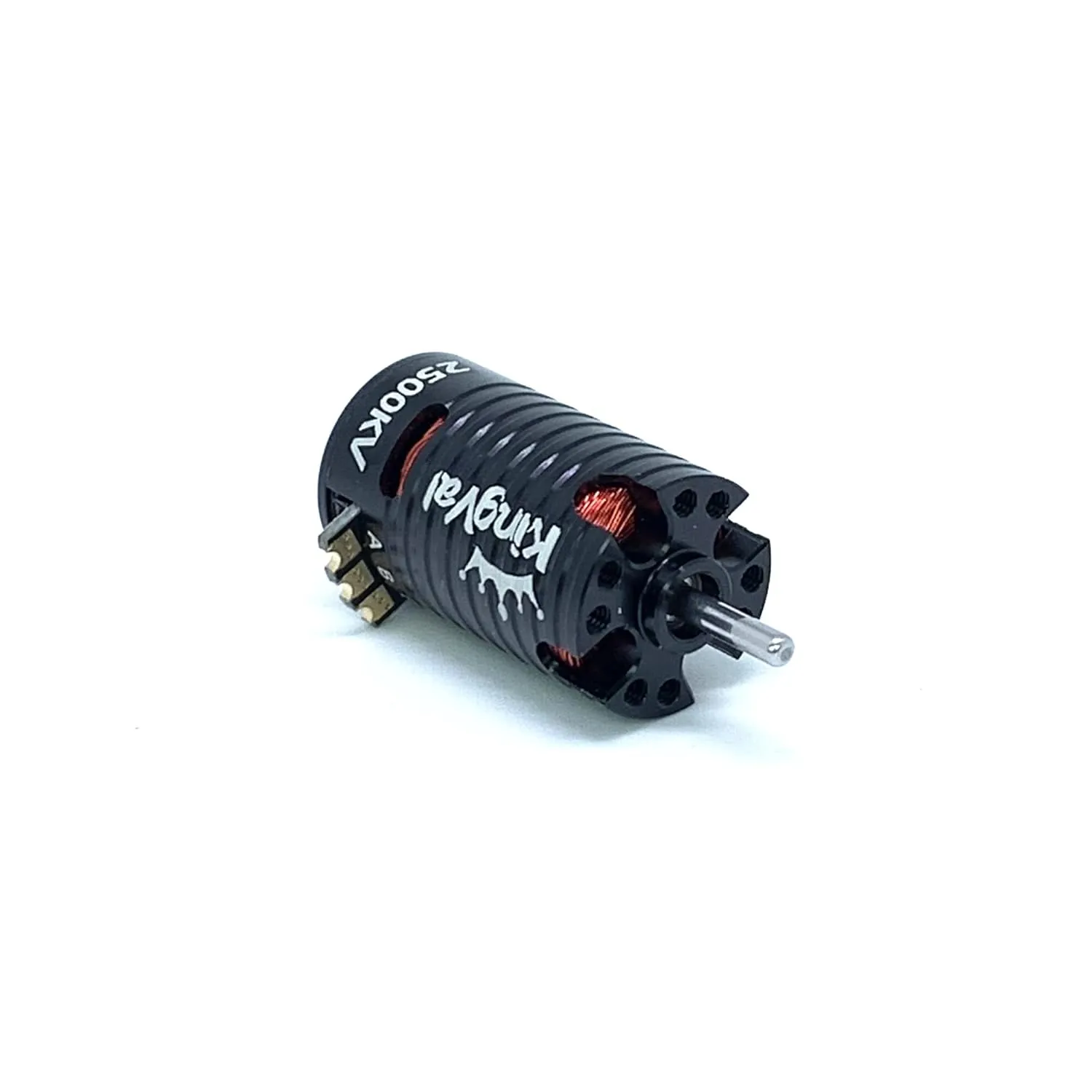

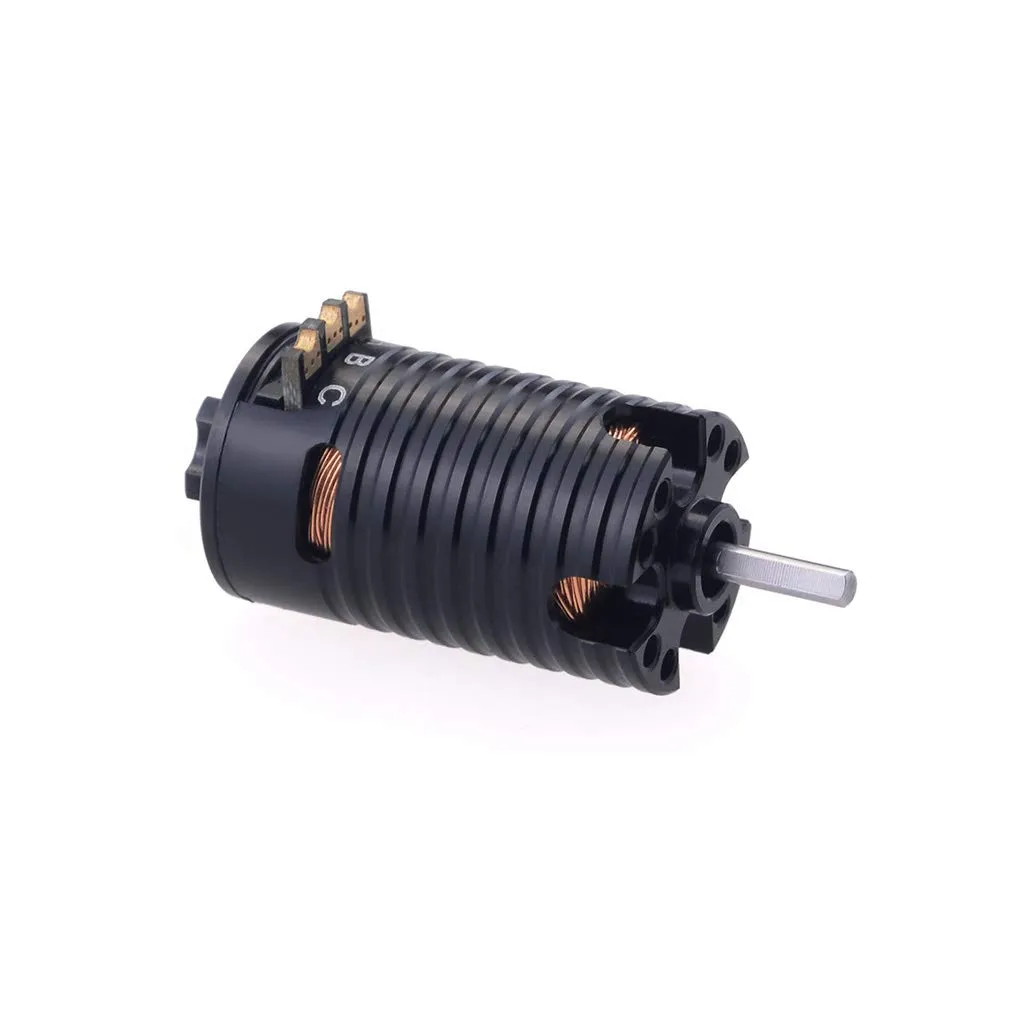

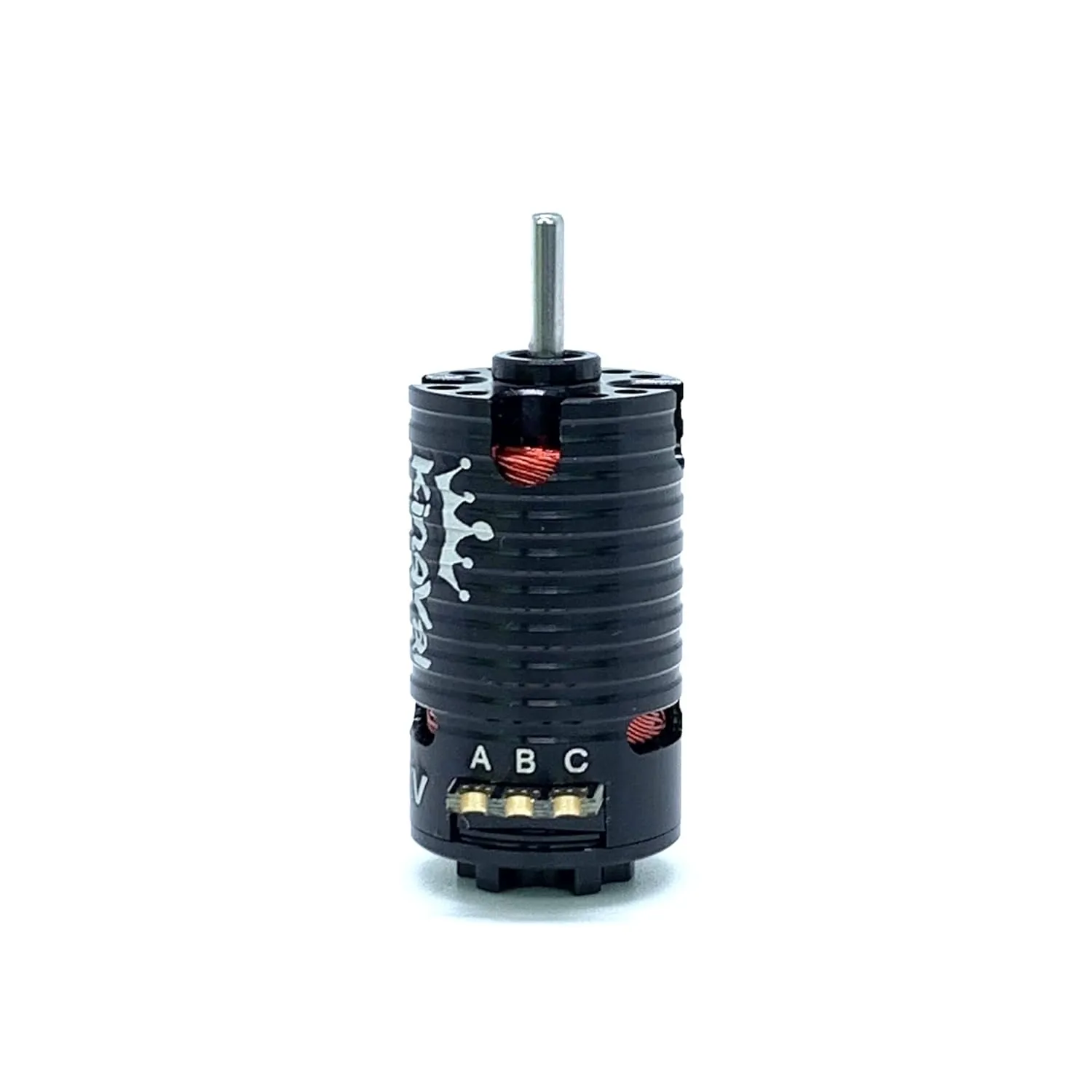

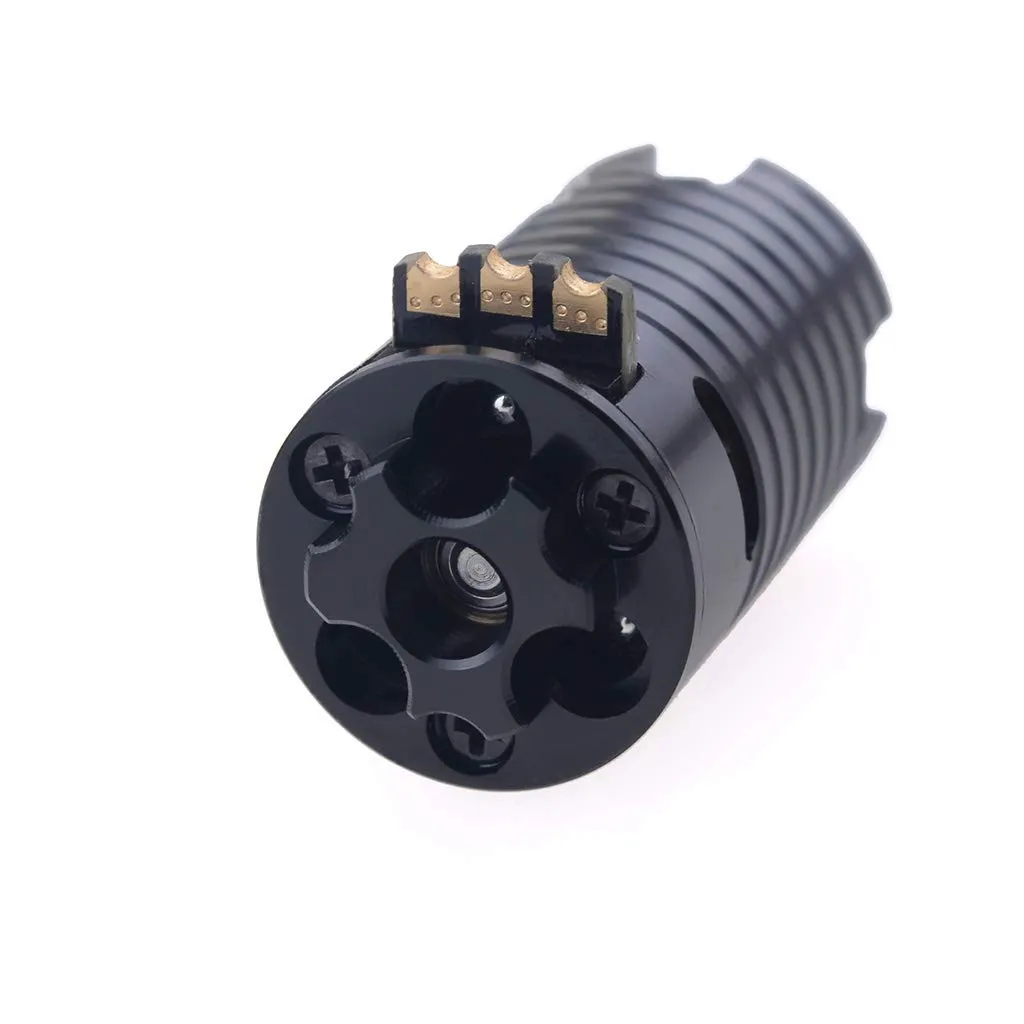

Product: MINI 1410 RC Motor
KV(RPM/Volt): 2500KV
Watts: 80
Max Voltage: <8.4V
Max Amps: 8A
IO: 0.1A
Resistance: 1.25
Rotor Poles:2
Max RPM:60000
Length:25mm/0.98in
Diameters:15mm/0.59in
Length of; extend shaft:10mm/0.39in
Shaft: ø2mm
Weight:17g/0.6oz

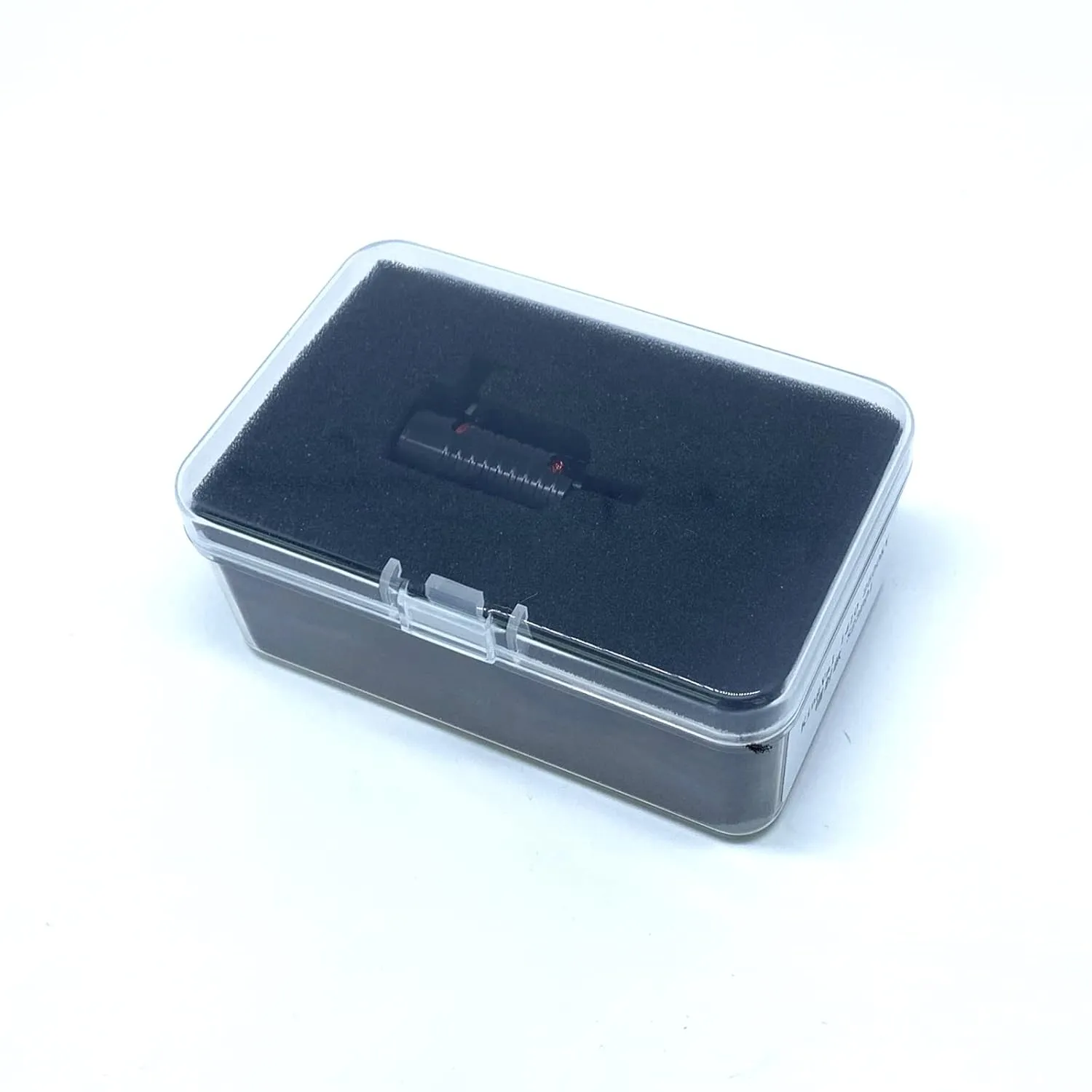

Package Included:
1 * MINI 1410 Motor
- Product Dimensions : 1.61 x 0.71 x 0.71 inches; 1.34 ounces
- Date First Available : February 3, 2023
- Manufacturer : KingVal
- Country of Origin : China
