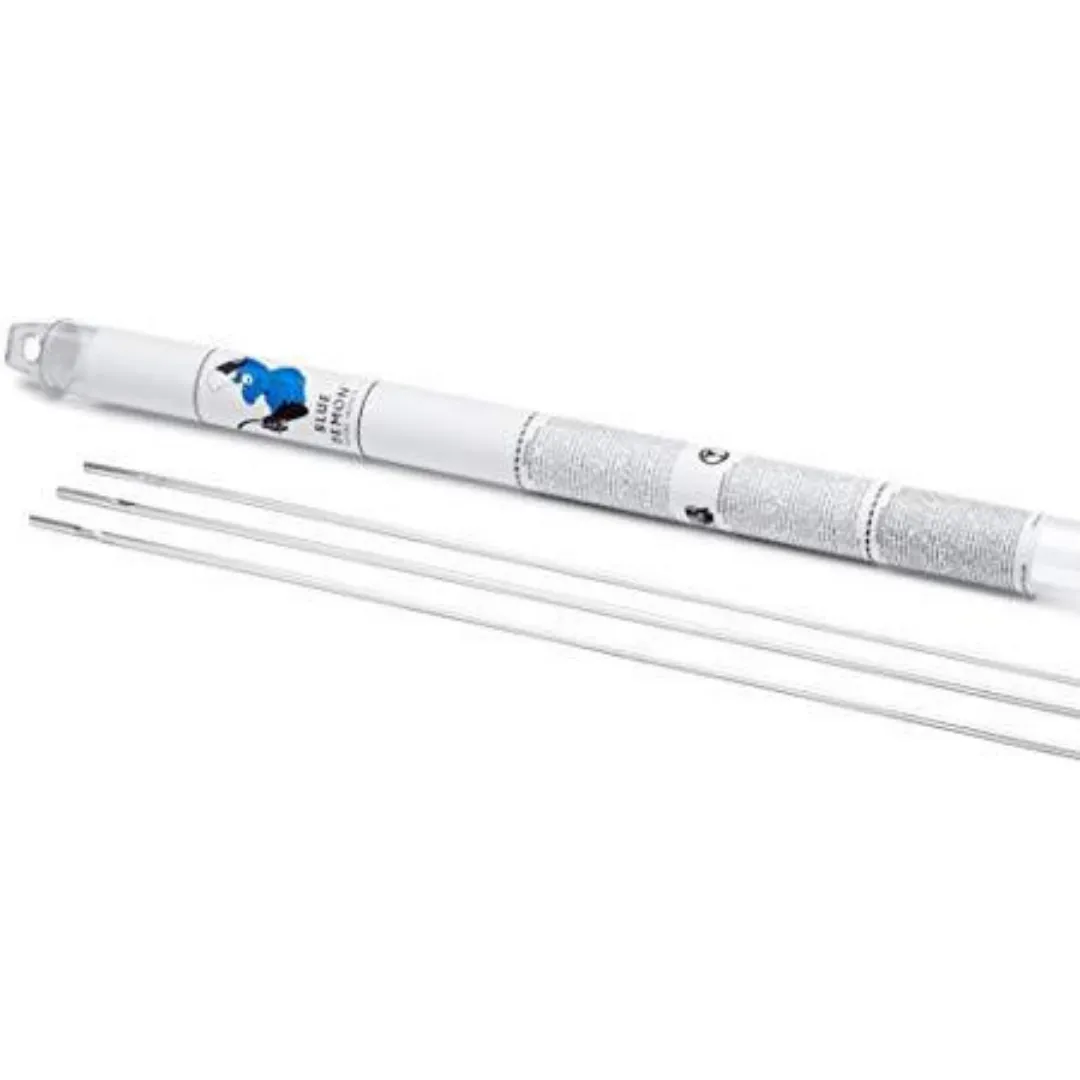

Blue Demon ERAZ61A Magnesium TIG Rod

ERAZ61A magnesium welding alloy is generally the preferred filler metal when welding magnesium base metals of similar chemical composition as well as ZK21A.  It produces strong joints with high tensile strength.  Cleanliness of both the filler metal and base metal is extremely important when welding with magnesium.  Flux is NOT required for TIG or MIG welding processes of ERAZ61A magnesium alloy. Although Oxy-acetylene welding of this alloy is uncommon it can be done and should be limited to single-pass welding on thin gauge magnesium materials.

AWS Specification:

• ANSi/AWS A5.19-92 (R2006)
• AWS Classification ERAZ92A

Options:

• 1/16, 3/32, 1/8, - 1 lb per package
• Rod length is 36"

Approximate number of rods per 1 lb. pack for each diameter:

• 1/16" (1.6mm): 26 - 30
• 3/32" (2.4mm): 12 - 16
• 1/8" (3.2mm): 8 - 10

Suggested Operating Range in Amps:

• 3/32″ 35 – 125
• 1/8″ 160
• 5/32″ 175

Welding Current: GTAW – AC/DCEP

Typical Wire Chemistry
Al 5.8 – 7.2
Be 0.0002 – 0.0008
Mn 0.15 – 0.5
Zn 0.4 – 1.5
Cu 0.05
Fe 0.005
Ni 0.005
Si 0.05
Mg REM
OTHER 0.30

Typical Mechanical Properties
(As Welded)
Yield Strength, ksi 30
Tensile Strength, ksi 44
Elongation%, min 16
Brinell Hardness 60
Melting Point °F 1140
