- Helium HNT Miner Bobcat Nebra RAK Syncrob 915mhz LoRa Antenna -Frequency: 824-960MHz (868mhz/ 915 MHz), it is suitable for rak Nebra bobcat easylinkin syncrob helium miners and works with other Lora equipment
- Applications include M2M, Telemetry, SCADA, Video Security, Marine, Office & Home. Compatible with Cisco, Cradlepoint, Digi, MoFi, Novatel, Pepwave, Proxicast, Sierra, SureCall and weBoost equipment.
- Must be connected via 50-ohm coaxial cable to a modem / router / gateway / access point / booster / radio device. Does not improve signal for phones or other devices not directly wired to the antenna.
- Antenna are made by high quality material, it can significantly enhance the use range and signal transmission capability of your mobile radio.
- Applications Include: Low Data Rate Communication Networks, Long Distance LoRa Nodes, IoT & M2M Nodes, Industrial & Environmental Monitoring, Smart Metering Applications, Inventory Tracking, Vending Machine Data & Monitoring, LoRaWAN, Multipoint and NLOS Applications, Wireless Video and Security Systems
- N Female connector - Outdoor weatherproof fiberglass with high gloss urethane finish - Integrated ground plane - No additional ground plane needed - Mast sold separately

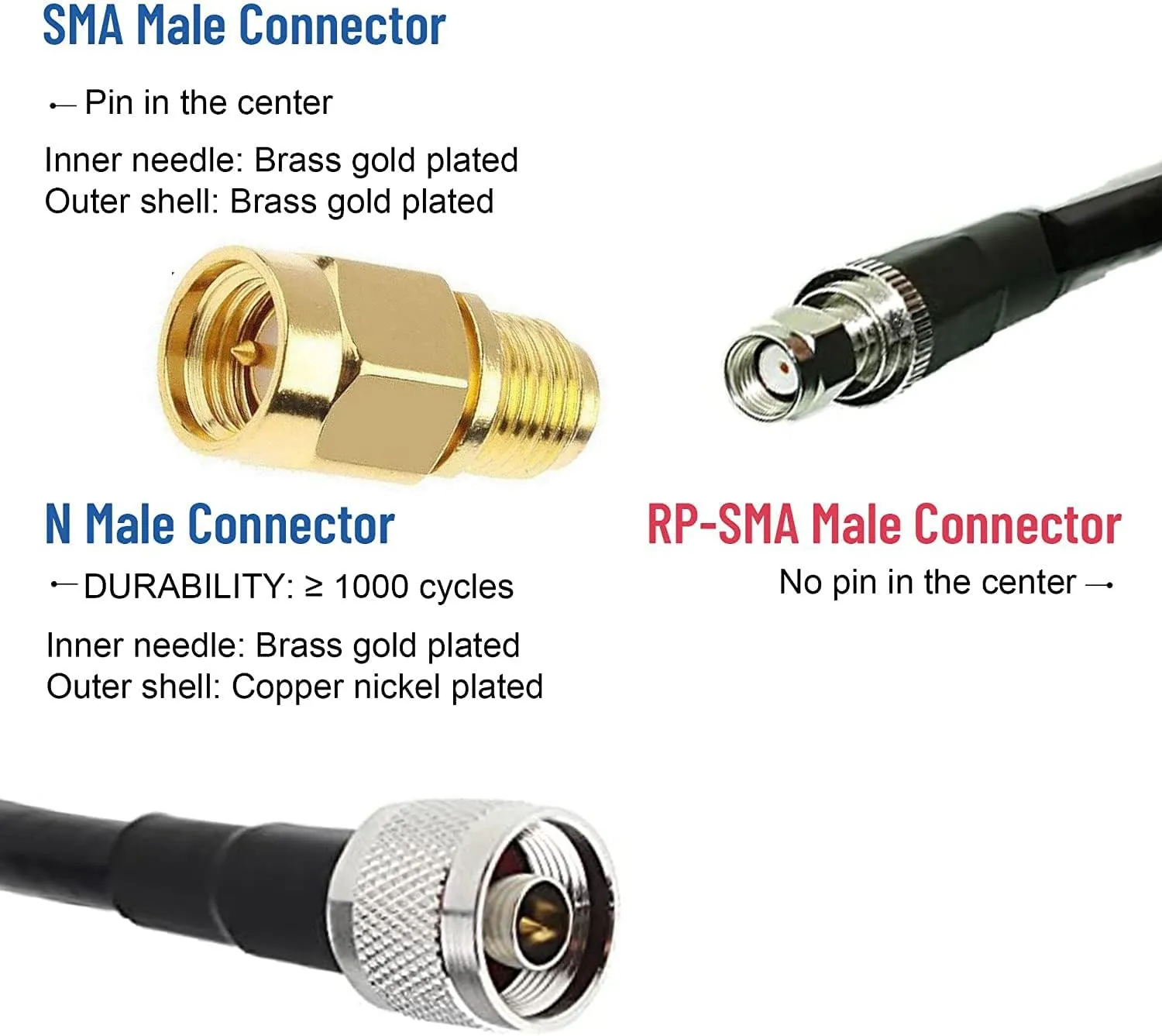

- cable length :32.8foot RG58 SMA connector,include 1pcs RP-sma adapter

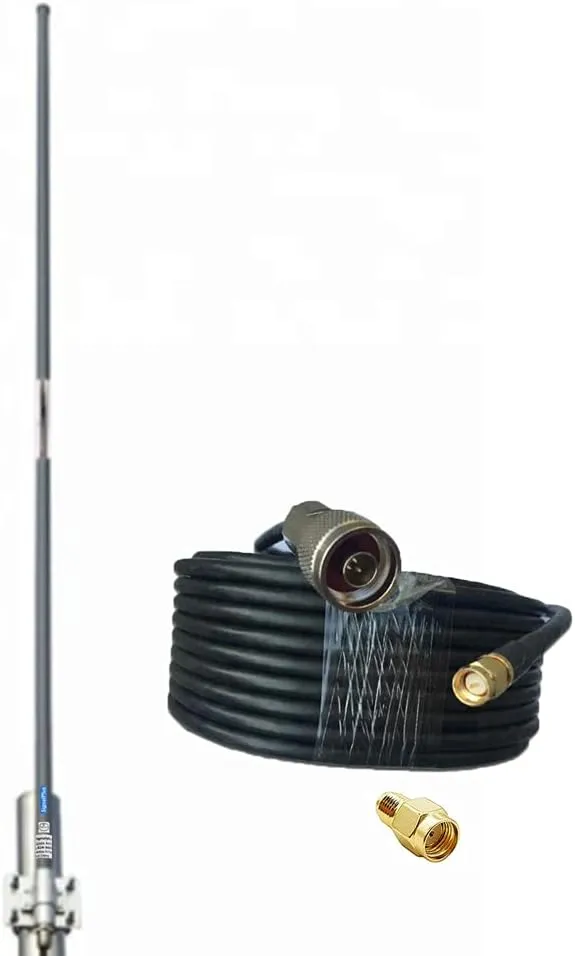

- Packing Listing : 1xAntenna & 1X10 meter of SMA RG58 Cable & 1X SMA Female to RP-SMA Male Adapter & 1set U-clip code
Electrical DataFrequency range（MHz）: 824MHz - 960MHz .
Bandwidth（MHz） : 136 .

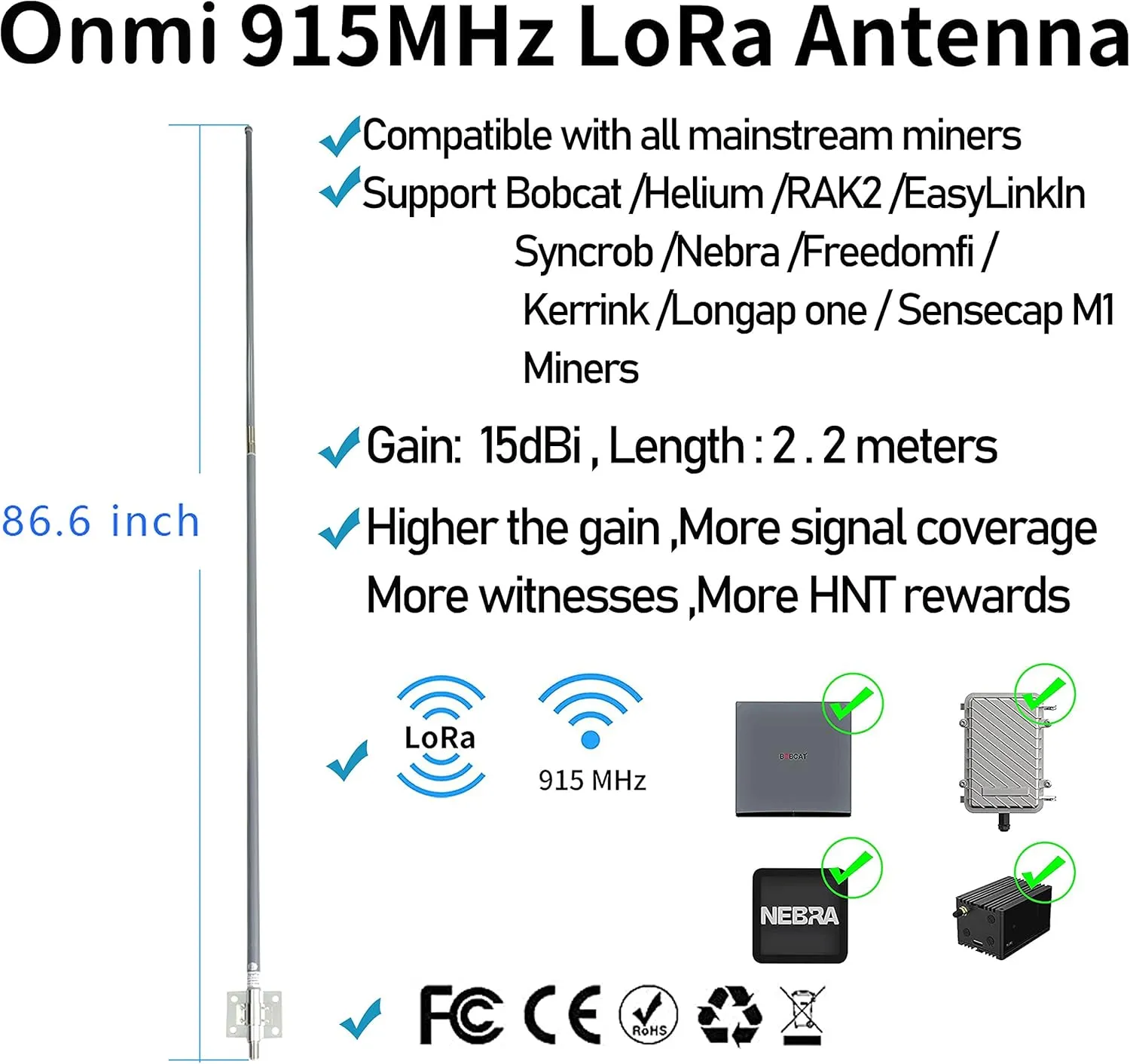

Gain（dBi）: 15 .
Half-power beam width（°） : H:360 V:20 .
VSWR : ≤1.5 .
Input Impedance（Ω） : 50 .
Polarization: Vertical .
Maximum input power（W）: 50 .
Lightning protection : DC Ground .
Input connector type : N Female .
Dimensions (mm) : Φ20*2200 .
cable length :32.8foot RG58 SMA\RP-SMA connector
Antenna weight（kg） : 0.9 .
Operating temperature（°c）: -40～60 .
Rated Wind Velocity（m/s）: 60 . Radome color : Gray .
Mounting way : Pole-holding .
Mounting hardware（mm） : ￠40-￠60 .
