Product Specifications
- Pole Shaft - Manufactured on computer-controlled equipment to customer specifications using filament wound technology. Strict control of glass, fiber and resin ensures a consistent product. Less electrically conductive than steel, aluminum or wood.
- Pole Top - Poles can be provided with tenon top construction or capped/drilled to customer specifications. Tenons on all poles are made of high-strength corrosion resistant aluminum.

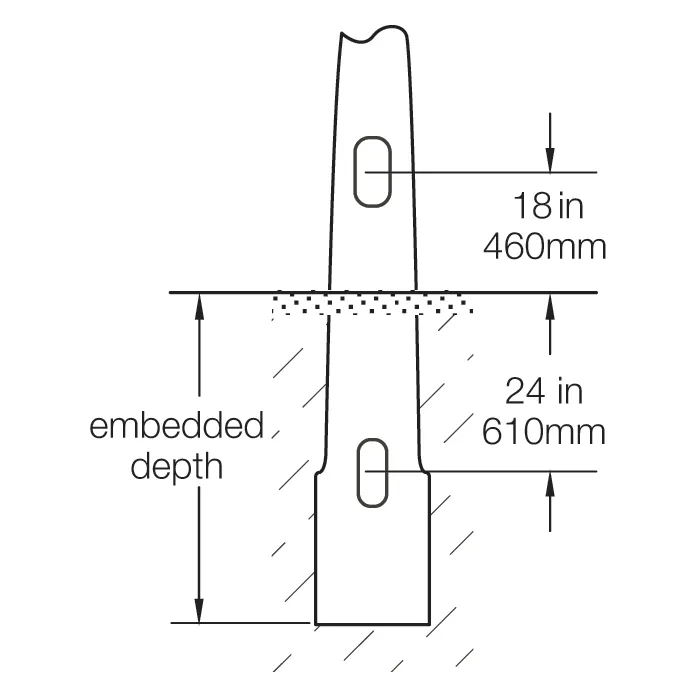

- Hand Hole - 2.5"x 5" hand hole is provided at the base end of the pole assembly. Each hand hole includes a cover and the cover attachment hardware.
- Grommet - 1.5" in diameter hole for conduit located 24" below ground line unless otherwise specified.
- Anti-Rotation Device - Wound permanently into the pole below grade. Located 6" from the bottom of the pole.
- Finish - Rust-proof and corrosion-resistant for low lifetime maintenance. We finish our smooth and natural poles with a special finishing resin applied at 12 - 15 mils thick which provides a superior finish to the normal 1.5 mil thick paint. Resin is pigmented and fortified with ultraviolet inhibitors to produce a long-lasting, reliable product.
- Engineering & Compliance - Poles are constructed to comply with specifications of ANSI, AASHTO and ASTM standards. High-wind-speed light poles with ratings up to 180 mph available by contacting the factory.
